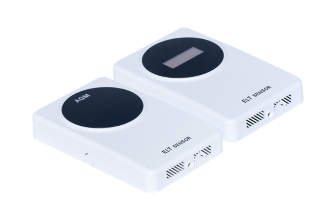

Transmitter AQM-200
AQM-200 series are C.E. and FCC certified-multi-gas sensing Air Quality Monitor and Transmitter, They could detect CO2, CO, and various Voletile Organic Compounds, Temperature, Humidity. They are equiped with Locking nut joint and mounting holes for Europe or US as well as Korea.
∙ Application: Automatic indoor ventilation system, Industries and life safety, Educational facilities and health care facilities
∙ Measurement Range :
CO2 0~10,000ppm(basic), 0~30,000ppm(optional)
CO 0~250ppm(basic), 0~1,000ppm(optional)
Temp/Humid -40~100℃ / 0~100% RH
VOCs benzene, toluene, cigarette smoke etc.
∙ Accuracy : CO2 3% ±30ppm of reading
∙ Input Power : 12VDC, 24V DC/AC
∙ Output : LCD (optional: RS485-Modbus)
